1.0'' Single Chain Ceiling Roll Forming Machine With Fly Shear Cutting 0.2-0.5mm

Name: 10 Single Chain Ceiling Roll Forming Machine With Fly Shear Cutting 0205mm
Brand: Saibo
Price: 1 USD

Quality 1.0'' Single Chain Ceiling Roll Forming Machine With Fly Shear Cutting 0.2-0.5mm wholesale

Brand Name : Saibo

Model Number : YX35.8-34.5

Certification : CE/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 300 sets per year

Delivery Time : 70 working days after received deposit

Packaging Details : Suitable for ocean shipment

Product Name : Square Pipe Roll Forming Machine

Power : 5.5KW

Size Of purlin : YX35.8-34.5

Steel thickness : 0.2-0.5mm

 Cutting powe : 2.2KW

Station : About 16 stations + one station for rectify

Roller material : ASTM1045 chrome plated surface with chrome

Shaft diameter : ￠56mm solid shaft

Decoiler : Manual or hydraulic

Drive : By 1.0 inch single chain

Contact Now

1. Specification of the material

1	Suitable Material	Colored Steel plate, Galvanized steel, G550
2	Width of the raw material	110mm
3	Thickness	0.2mm-0.5mm

2. Machine Detailed Parameters

1	Roll Forming	YX35.8-34.5
2	Machine structure	Wall board structure
3	Total power	Motor power-5.5kw
4	Cutting power	2.2kw
5	Roller stations	About 16 stations + one station for rectify
6	Productivity	0-15m/min
7	Drive system	By 1.0 inch single chain
8	Diameter of shaft	￠56mm solid shaft
9	Voltage	380V 50Hz 3phases (Customized)
10	Color Of The Machine	Yellow and blue
11	Deliver Time	70 days
12	Terms Of Payment	30%T/T 70% pay before shipment

3. Profile drawing

1.0'' Single Chain Ceiling Roll Forming Machine With Fly Shear Cutting 0.2-0.5mm

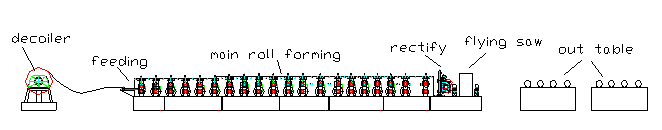

4. The Chart of Process Flow

1.0'' Single Chain Ceiling Roll Forming Machine With Fly Shear Cutting 0.2-0.5mm

5. Specification of Components

(1) 3T manual decoiler

Adopt automatic hydraulic system for expand
Width of feeding: 350mm
Capability: 3 Ton
Bound of expand &fight: 380mm—520mm
Mode of expand &fight: inner expand &fight by manual

(2) Main Roll Forming Machine

Roller material:ASTM1045 chrome plated surface with chrome
Shaft diameter: ￠56mm material: SAE1045 with tempering
To avoid accidents, the driven parts will be covered with the protective cover

(3) Machine sturcture

Main frame by 350H beam welding
Machine structure: Wall board structure

(5)Hydraulic cutting system

Cutting after forming: Cut the sheet after roll forming to required length
Adopt flying shear cutting
Material of blade:Cr12, 58-62 HRC hardness
Cutting power: 2.2KW
Length measuring: Automatic encoder length measuring
Tolerance of length: +/- 1.5mm for each piece end product

(6) Computer Control Cabinet

Programmable setting of profile length and quantity
Operating system language: English and Chinese
Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

PLC: Panasonic or customerization
